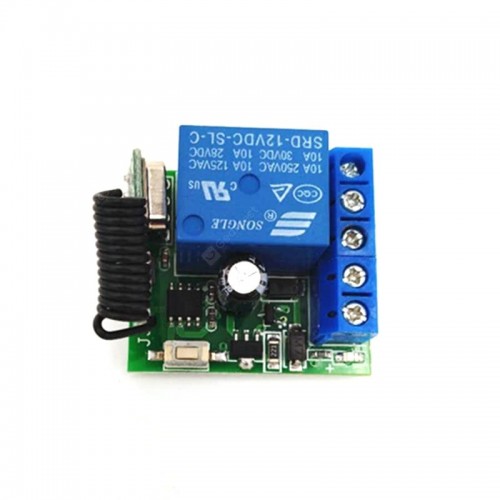

FYZ1382 12V 10A RF Transceiver Module – Single-Channel DC Control Module

1. Model: FYZ1382 — 12 V DC, 10 A, single-channel integrated RF transceiver module. Widely used in electronic door locks, intercom doorbells, garage doors, lighting systems, automatic windows/doors, and access control systems.

2. Specifications:

• Input Power: DC 10 V – 14 V
• Standby Current: < 5 mA
• RF Frequency: 315 MHz or 433 MHz (selectable — please specify at time of order)
• Receiver Sensitivity: −97 dBm (strong anti-interference performance, stable reception)
• Transmission Range: ≥ 20 meters (open, unobstructed environment)
• Decoding Method: MCU software decoding (multi-protocol adaptive support)
• Remote Learning Capacity: Up to 25 remotes via one-touch learning
• Compatible Remote Types: Learning-code and fixed-code remotes (rolling-code functionality available as optional upgrade)
• Operating Modes: Momentary, latching (toggle switch selectable), and delay-latching (delay options: 5 s / 10 s / 15 s)
• Wiring: Industrial-grade fixed terminal block — secure, anti-loosening design
• Output Terminals: NO (Normally Open), NC (Normally Closed), COM (Common) — supports diverse load control requirements

3. Package Includes:

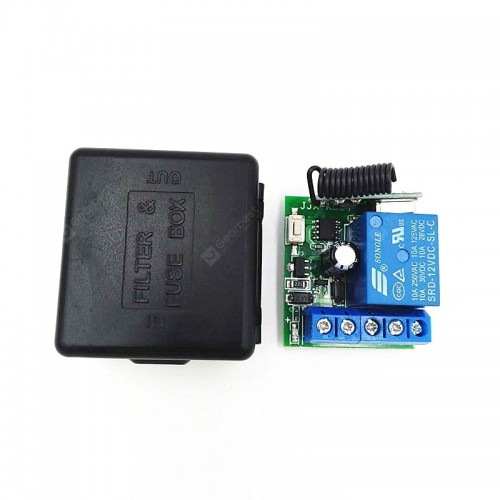

• 1 × Receiver module (black high-strength plastic housing with built-in metal shielding)
• 1 × Universal remote control (pre-installed with 27A coin-cell battery — ready to use out of the box)

Material: Flame-retardant ABS plastic housing + built-in metal shielding + reinforced PCB structure — excellent heat dissipation, strong EMI resistance, and extended service life
